The Story

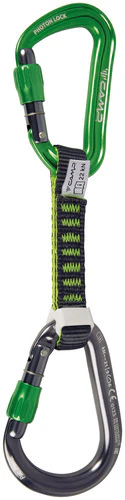

The Locker Draw combines the hyperlight Photon Lock carabiner with the Nimbus Lock HMS carabiner on the rope end for a sophisticated set up that can be used for quick, secure anchors, offset rigging points, and rappel extensions.
The Photon Lock is CAMP's lightest locking carabiner and the Nimbus Lock has all of the benefits of a full-utility HMS locking carabiner in a compact size. The unique shape ideally positions ropes for smooth action and the SphereLock nose makes clipping ropes and webbing easy. The 12 cm polyamide dogbone features the Karstop Evo carabiner retainer on the rope end to prevent rotation of the carabiner.
Specs
- Lightweight, full utility locker draw for quick, safe, and simple rigging and rappelling
- Equipped with a Photon Lock carabiner for clipping in and a Nimbus Lock for the rope end
- 12 cm polyamide dogbone features the Karstop Evo carabiner retainer on the rope end
| Major Axis Strength (Photon/Nimbus) | 23/21 kN |
| Minor Axis Strength (Photon/Nimbus) | 8/9 kN |
| Open Gate Strength (Photon/Nimbus) | 9/6 kN |
| Gate Open Clearance (Photon/Nimbus) | 17/22 mm |
| Sling Width | 16 mm |
| Weight Per Draw | 129 g / 4.6 oz |
Description
The Locker Draw combines the hyperlight Photon Lock carabiner with the Nimbus Lock HMS carabiner on the rope end for a sophisticated set up that can be used for quick, secure anchors, offset rigging points, and rappel extensions.
The Photon Lock is CAMP's lightest locking carabiner and the Nimbus Lock has all of the benefits of a full-utility HMS locking carabiner in a compact size. The unique shape ideally positions ropes for smooth action and the SphereLock nose makes clipping ropes and webbing easy. The 12 cm polyamide dogbone features the Karstop Evo carabiner retainer on the rope end to prevent rotation of the carabiner.
Specs
- Lightweight, full utility locker draw for quick, safe, and simple rigging and rappelling
- Equipped with a Photon Lock carabiner for clipping in and a Nimbus Lock for the rope end
- 12 cm polyamide dogbone features the Karstop Evo carabiner retainer on the rope end
| Major Axis Strength (Photon/Nimbus) | 23/21 kN |
| Minor Axis Strength (Photon/Nimbus) | 8/9 kN |
| Open Gate Strength (Photon/Nimbus) | 9/6 kN |
| Gate Open Clearance (Photon/Nimbus) | 17/22 mm |
| Sling Width | 16 mm |
| Weight Per Draw | 129 g / 4.6 oz |
